Checkweighers
Detectronic metal detection
Every pack weighed in motion, on the line
A Detectronic checkweigher weighs every pack as it travels and removes any pack outside the set tolerance. It protects the customer against underfill, and it shows the producer how much product is being given away above target.
Track Int’l Trade supplies standalone checkweighers or a combination system with metal detection in one frame — specified for Egyptian packing lines, pack format and how the hall is cleaned.
In-line, every pack
Nothing is taken off the line to be checked. Infeed spaces the packs, the weigh belt measures, the outfeed presents rejects.
Weight and metal together
A combination system puts both checks in one frame, one control, less line length and fewer transfer points where packs jam.
Separate reject bins
Underweight can be reworked. Metal must be quarantined. Combination machines never empty both reasons into one bin.
Giveaway you can see
Production statistics and giveaway reporting — usually the fastest cost saving on a high-volume packing hall floor.
Standalone or combination
Standalone checkweigher
Weight control alone, where metal detection is handled elsewhere on the line or is not required at this point.
- Dynamic weighing of packed product
- Automatic reject of out-of-tolerance packs
- Hygienic stainless construction
Combination with metal detector
Both functions in one frame and one control system. The most common specification when weight and contamination sit at the same point anyway.
- 607 or 608 detection platform, specified as a tunnel detector
- One set of product programmes
- Separate reject streams for weight and metal
Specifications
| Configurations | Standalone checkweigher, or combination system with metal detector |
|---|---|
| Construction | Hygienic stainless steel; washdown specification available |
| Weight range and accuracy | Quoted together with throughput, for the pack and line speed |
| Throughput | Matched to the packing line |
| Reject | Pusher, air blast, drop flap, retracting nose or diverter — chosen for the pack |
| Reporting | Production statistics and giveaway data |
| Detection (combination) | 607 or 608 platform, specified as for a standalone tunnel detector |
Gallery

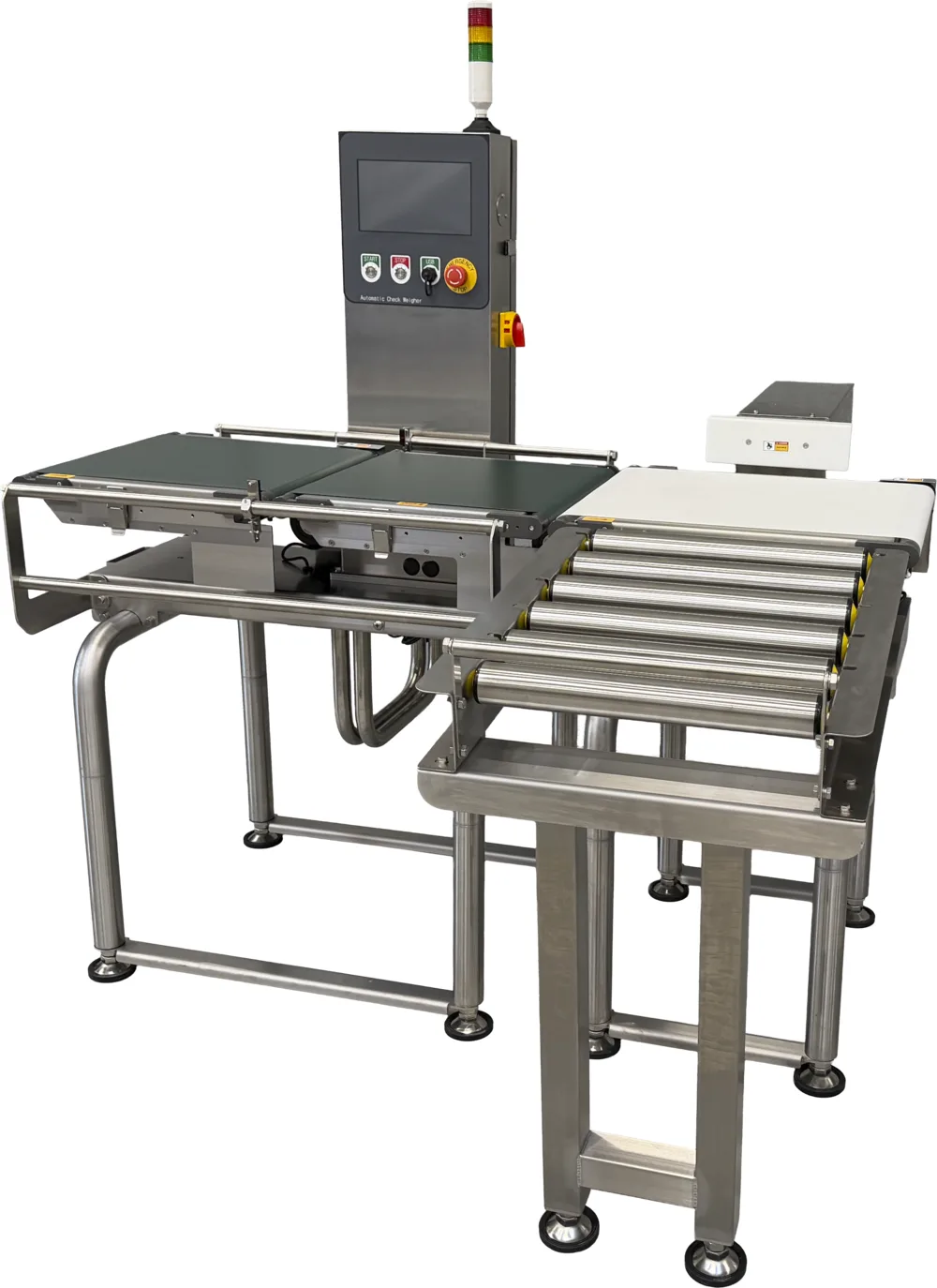

Checkweighers on the line
